The Position : Home > Products > Mounted Bearing Units > Cast Iron Bearing Units > UCT200-Inch Size

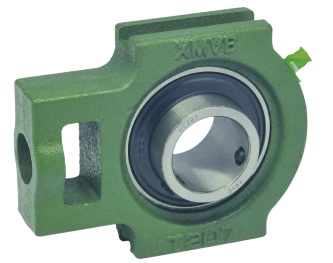

UCT205-16
UCT200-Inch Size take-up mounted units feature inch-bore insert bearings and sturdy cast iron take-up housings, ideal for tensioning applications.
Features:
Rugged cast iron construction for long service life
Inch bore compatible with standard imperial shaft systems
Easy adjustment for reliable tension control

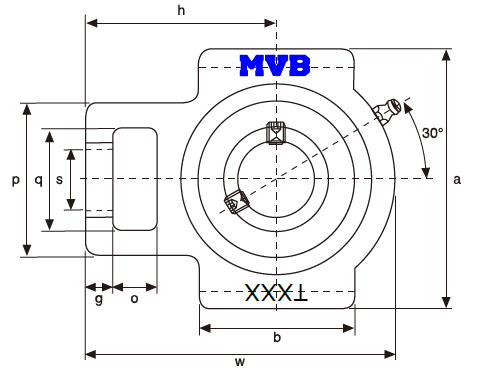

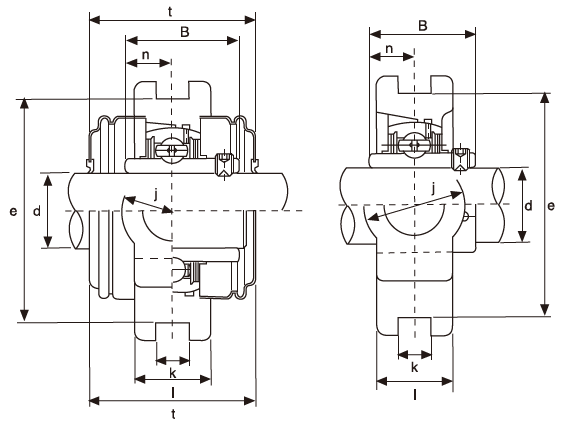

Parameter
MVBBearingUnitNo.
UCT205-16
d(in.)
1
o(in.)
5/8
g(in.)
13/32
p(in.)
2
q(in.)
1 1/4
s(in.)
3/4
b(in.)
2
k(in.)
15/32
e(in.)
2 63/64
a(in.)
3 1/2
w(in.)
3 13/16
j(in.)
1 1/4
I(in.)
15/16
h(in.)
2 7/16
t(in.)
1 7/8
Bi(in.)
1.3425
n(in.)
0.563
Bearing No.
UC205-16
Housing No.
T205
Weight(Ibs.)
1.8
