The Position : Home > Products > Mounted Bearing Units > Cast Iron Bearing Units > UCFCX00-Inch Size
UCFCX05-16
UCFCX00-Inch Size extended inner ring centering flanged mounted units combine inch-bore inserts with cast iron flanged housings for stable operation.
Features:
Extended inner ring design for better shaft support
Rugged cast iron housing for long service life
Inch bore suitable for imperial shaft systems

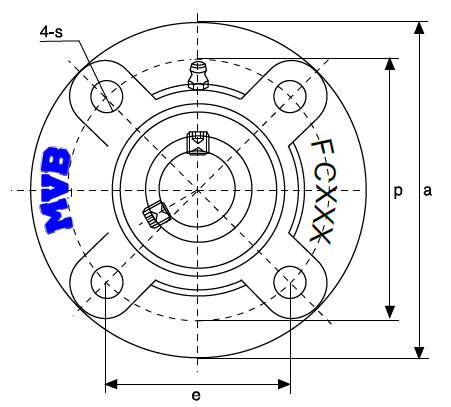

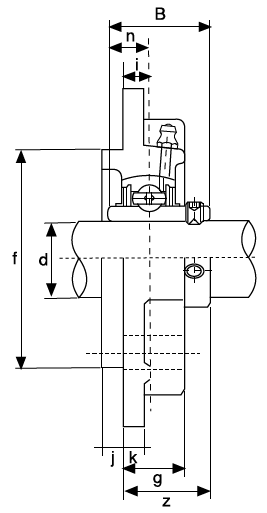

Parameter
MVBBearing UnitNo.
UCFCX05-16
d(in.)
1
a(in.)
4 3/8
p(in.)
3 5/8
e(in.)
2 9/16
i(in.)
25/64
s(in.)
08-3月-2025
j(in.)
15/64
k(in.)
08-3月-2025
g(in.)
15/16
f(in.)
2.9921
z(in.)
1 17/64
Bi(in.)
1.5
n(in.)
0.626
Bolt(in.)
16-5月-2025
BearingNo.
UCX05-16
HousingNo.
FCX05
Weight (lbs.)
2.65
