The Position : Home > Products > Mounted Bearing Units > Cast Iron Bearing Units > UCFC200-Inch Size
UCFC205-16

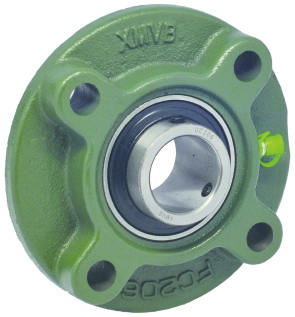

UCFC200-Inch Size centering flanged mounted units feature inch-bore insert bearings and sturdy cast iron flanged housings, ideal for reliable alignment in general industrial equipment.
Features:
Rugged cast iron construction for long service life
Inch bore compatible with standard imperial shaft systems
Easy installation and low maintenance

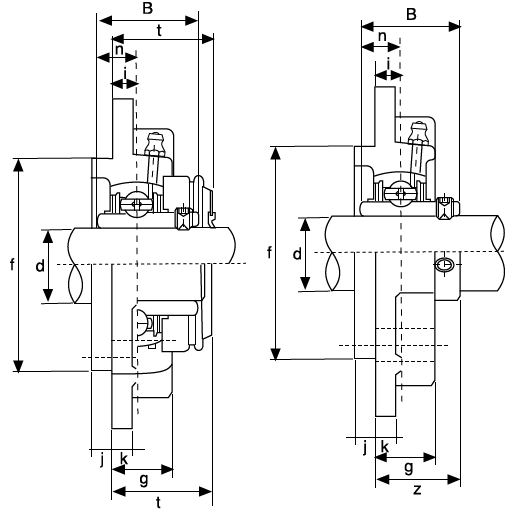

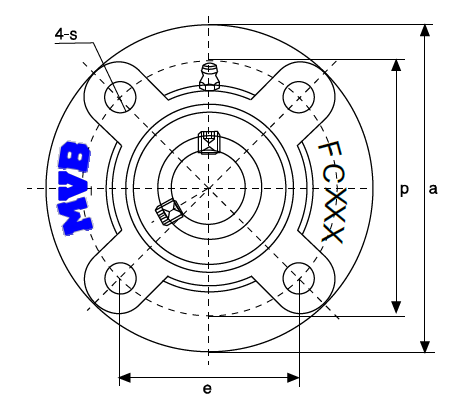

Parameter
MVBBearing UnitNo.
UCFC205-16
d(in.)
1
a(in.)
4.53125
p(in.)
3.546875
e(in.)
2.5
i(in.)
25/64
s(in.)
15/32
j(in.)
15/64
k(in.)
9/32
g(in.)
13/16
f(in.)
2.7559
z(in.)
1.15625
B(in.)
1.3386
t(in.)
1.34375
n(in.)
0.563
Bolt(in.)
3/8
BearingNo.
UC205-16
HousingNo.
FC205
Weight (Ibs.)
2.12
