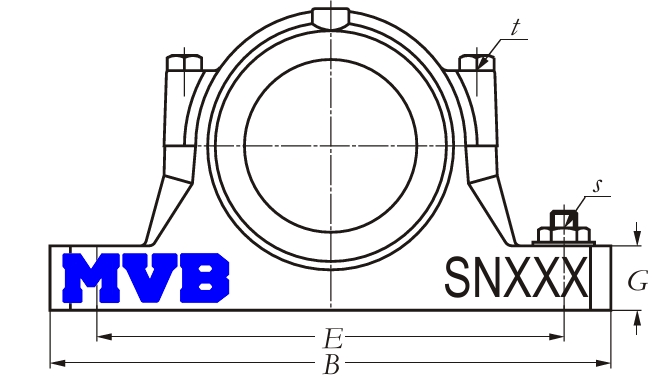

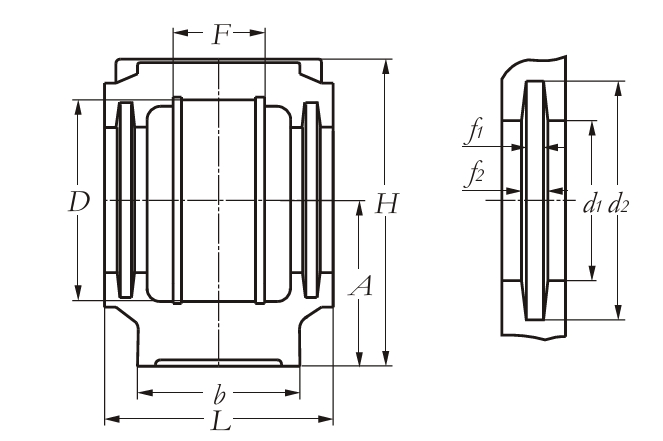

Parameter
MVB HOUSING SIZE
SN316
SHAFTDIAMETERd ( mm )
80

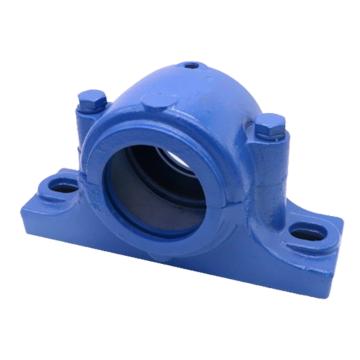

PLUMMER BLOCK HOUSING
SN316
D( H8 ) ( mm )
170
B ( mm )
380
b ( mm )
100
G ( mm )
35
F( H13 ) ( mm )
68
A ( h13 ) ( mm )
112
L ( mm )
145
H ( mm )
215
E ( mm )
290
d1( H12 ) ( mm )
92.0
d2( H13 ) ( mm )
111
f1 ( mm )
6
f2 ( mm )
93

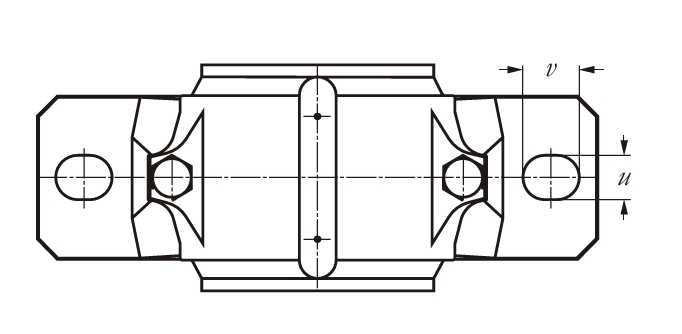

u ( mm )
22
v ( mm )
27
s ( mm )
M20
t ( mm )
M16
WEIGHT(Kg)
162
BEARING NUMBER
1316/213162316/22316
NUMBER
SR170X145SR17X10
QTY
2/1
FELT SEAL
FS9X10X320
ENDCOVER
520NA-518UA
